7.9m Steel Frame Car Spray Booth Auto Spray Booth For Workshop Garage 25000m3/H

Minimum Order Quantity : 1 SET Price : Price peivate chat to get
Packaging Details : Standard Package Delivery Time : 5-8 weeks
Payment Terms : T/T, Western Union Supply Ability : 100 PCS Per Month
Place of Origin: Shanghai,China Brand Name: SINOCAR
Certification: CE/CCC/ISO 9001 Model Number: SB-002

Detail Information

Control: Manual Working Temperature: 40-80℃
Material: Steel Spray Booth: Included
Safety Door: Rock Wool Panel Fire Resistant Wall Without Glass Filter System: Floor Filter & Celling Filter
Inner Size: 7900*4100*2700mm (L*W*H) Outer Size: 8000*5300*3300mm (L*W*H)
Intake Fan: 2×4KW YDW Double-intake Centrifugal Fans
High Light:

7.9m Car Spray Booth

,

Steel Frame Car Spray Booth

,

auto spray booth 25000m3/h

Product Description

7.9m Steel Frame Car Spray Booth for Professional Workshop & Home Garage

Our Vehicle Spray Booth is an ideal solution for vehicle painting and coating. It is designed with a maximum working temperature of 80℃, manual control, curing system included, steel material, and LED lighting. It is the perfect tool for vehicle painting and coating processes. The Vehicle Spray Booth is designed for easy installation and can be easily customized to fit any production line. It also provides a safe and efficient environment for painting and coating vehicles. With its robust design and superior performance, our Vehicle Spray Booth offers a reliable and cost-effective solution for vehicle painting and coating.



SINOCAR SB-002(STANDARD SPECS)
Basement Structure Basement Steel structure, 2 row of checked plates and 3 rows of vein boards,with the loading capacity of 3T
Basement Height 300MM
Ramp Inner ramp/external ramp
Booth Cabin Panel 1.Colorful steel skin panel. Rock wool panel fire resistant wall 5cm, two layers 0.35cm steel cover with fire resistant thermal insulation materials in.
2.Galvanized steel roof panel, anti-flame
Front Door/Safety Door Three offs sheetmetal front door with glass
Safety Door Rock wool panel fire resistant wall without glass
Lighting System Top Lighting LED Ceiling lights:8 groups×3pieces =24pieces ×16W, with powder-coated light box
Filter System Primary Filter The primary filter can capture granules larger than 10μm, filtering rate > 83%
Floor Filter Multi-layer fiberglass filter, filtering rate>70%
Ceiling Filter Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%
Intake&Exhaust System Intake Fan 2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h
Exhaust Duct Straight tube and bend
Heating System Halogen Infrared Heating 220V/380V,24KW, 8 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps.(Diesel heating: oil burner with 140000Kcal/h, Optional)
Max.Working Temperature 80℃
Heating Up Time 5-8min
Control System Control Panel Intelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop
Functions Spray, Bake, Lighting and Emergency Stop
Size Inner Size 7900*4100*2700mm (L*W*H)
Outer Size 8000*5300*3300mm (L*W*H)
Remarks: Electric and Diesel Heating System are optional according to the requirement.

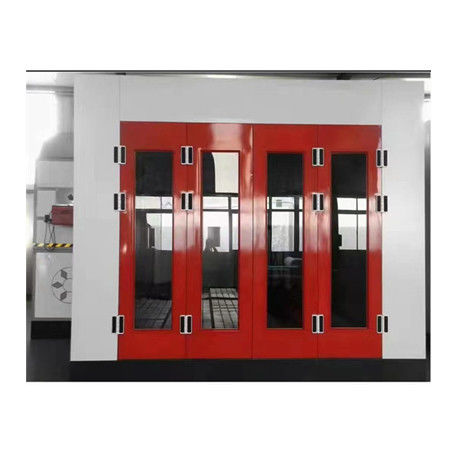

7.9m Steel Frame Car Spray Booth Auto Spray Booth For Workshop Garage 25000m3/H 07.9m Steel Frame Car Spray Booth Auto Spray Booth For Workshop Garage 25000m3/H 1
