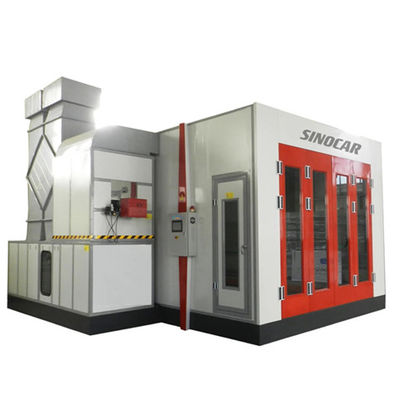

Manual Control Car Spray Booth Automotive Paint Booth With Celling Filter
Contact Person : Victoria
Phone Number : +8615935349527
WhatsApp : +8615935349527
| Minimum Order Quantity : | 1 SET | Price : | $6000-$15000 |
|---|---|---|---|
| Packaging Details : | Standard Package | Delivery Time : | 5-8 weeks |
| Payment Terms : | T/T, Western Union | Supply Ability : | 100 PCS Per Month |
| Place of Origin: | Shanghai,China | Brand Name: | SINOCAR |
|---|---|---|---|
| Certification: | CE/CCC/ISO 9001 | Model Number: | SB-003 |
|
Detail Information |
|||
| Control: | Manual | Working Temperature: | 40-80℃ |
|---|---|---|---|
| Curing System: | Included | Material: | Steel |
| Spray Booth: | Included | Safety Door: | Rock Wool Panel Fire Resistant Wall Without Glass |
| Filter System: | Floor Filter & Celling Filter | Inner Size: | 8900*4650*2800mm (L*W*H) |
| Outer Size: | 9000*5850*3400mm (L*W*H) | Package Size:: | 4.2*2.2*2.1m |
| High Light: | 8.9m Car Spray Booth,300MM Car Spray Booth,commercial vehicle paint booth For Garage |
||
Product Description
Our car spray booth is designed for automotive painting applications. It is built with high-grade steel material to provide long-term durability and safety. The front door is made of three offs sheetmetal with glass, providing a secure and clear view for the operator. The max. working temperature of the spray booth can reach up to 80℃. It also comes with a two-stage air filter, which effectively captures paint particles and overspray while ensuring a clean and safe working environment. This automotive paint booth is perfect for vehicle painting and it is suitable for a variety of painting jobs. It is a great choice for automotive shops who are looking for a reliable and efficient vehicle spray booth.
| SINOCAR SB-003(STANDARD SPECS) | ||
| Basement Structure | Basement | Steel structure, 2 row of checked plates and 3 rows of vein boards,with the loading capacity of 3T |
| Basement Height | 300MM | |
| Ramp | Inner ramp/external ramp | |
| Booth Cabin | Panel | 1.Colorful steel skin panel. Rock wool panel fire resistant wall 5cm, two layers 0.35cm steel cover with fire resistant thermal insulation materials in. 2.Galvanized steel roof panel, anti-flame |
| Front Door/Safety Door | Three offs sheetmetal front door with glass | |
| Safety Door | Rock wool panel fire resistant wall without glass | |
| Lighting System | Top Lighting | LED Ceiling lights:8 groups×3pieces =24pieces ×16W, with powder-coated light box |
| Filter System | Primary Filter | The primary filter can capture granules larger than 10μm, filtering rate > 83% |
| Floor Filter | Multi-layer fiberglass filter, filtering rate＞70% | |
| Ceiling Filter | Ceiling filter can capture granules bigger than 4μm, filtering rate> 98% | |
| Intake&Exhaust System | Intake Fan | 2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h |
| Exhaust Duct | Straight tube and bend | |
| Heating System | Halogen Infrared Heating | 220V/380V,24KW, 8 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps.(Diesel heating: oil burner with 140000Kcal/h, Optional) |
| Max.Working Temperature | 80℃ | |
| Heating Up Time | 5-8min | |
| Control System | Control Panel | Intelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop |
| Functions | Spray, Bake, Lighting and Emergency Stop | |
| Size | Inner Size | 8900*4650*2800mm (L*W*H) |
| Outer Size | 9000*5850*3400mm (L*W*H) | |
| Remarks: Electric and Diesel Heating System are optional according to the requirement. | ||
