2 Stage Filter Car Spray Booth Auto Body Spray Booth Working Temperature 80C

Minimum Order Quantity : 1 SET Price : $6000-$15000
Packaging Details : Standard Package Delivery Time : 5-8 weeks
Payment Terms : T/T, Western Union Supply Ability : 100 PCS Per Month
Place of Origin: Shanghai,China Brand Name: SINOCAR
Certification: CE/CCC/ISO 9001 Model Number: SB-001

Detail Information

Filter System: Floor Filter & Celling Filter Filter: 2-stage
Spray Booth: Included Product Name: Spray Booth
Safety Door: Rock Wool Panel Fire Resistant Wall Without Glass Safety: Explosion-proof
Max.Working Temperature: 80℃ Front Door/Safety Door: Three Offs Sheetmetal Front Door With Glass
High Light:

2 stage Car Spray Booth CE


Car Spray Booth 2700mm


auto body spray booth 80C

Product Description

How to get a quote quickly?

1.Click here to go to the SINOCAR official website:


2.Click live chat to get a quote now!

2-stage Filter Car Spray Booth included Curing System for Max Working Temperature 80C

Product Description:

The Vehicle Spray Booth is designed for automotive painting and offers a safe, efficient and cost-effective solution for any paint job. The booth is equipped with a two-stage filter, manual control, and a rock wool panel fire-resistant wall without glass. The front door is a three-offs sheetmetal front door with glass, and the maximum working temperature is 80℃. This Vehicle Painting Booth is perfect for any automotive paint jobs, providing fast and efficient paint coverage with superior results. The Automotive Paint Booth is designed to be energy-efficient while providing superior results and a safe environment.



  • Product Name: Car Spray Booth
  • Control: Manual
  • Filter System: Floor Filter & Celling Filter
  • Curing System: Included
  • Front Door/Safety Door: Three Offs Sheetmetal Front Door With Glass
  • Safety Door: Rock Wool Panel Fire Resistant Wall Without Glass
  • Automotive Paint Booth: Included

Technical Parameters:

Basement Structure Basement Steel structure, 2 row of checked plates and 3 rows of vein boards,with the loading capacity of 7T
Basement Height 300MM
Ramp Inner ramp/external ramp
Booth Cabin Panel 1.Colorful steel skin panel. Rock wool panel fire resistant wall 5cm, two layers 0.35mm steel cover with fire resistant thermal insulation materials in.
2.Galvanized steel roof panel, anti-flame

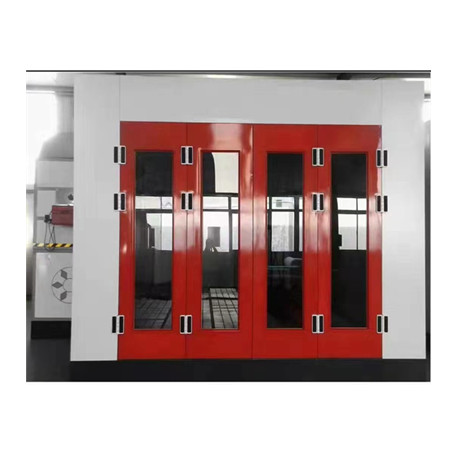

Front Door/Safety Door Four offs all glass front door
Safety Door sheetmetal door with glass
Lighting System Top Lighting LED Ceiling lights:8 groups×3pieces =24pieces ×16W, with powder-coated light box
Wall LED boards 8 sets of LED light 3*16W=48W
Filter System Ceiling Filter Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%
Intake&Exhaust System Intake Fan 2×5.5KW YDW double-intake centrifugal fans, total air capacity: 28000m³/h
Outlet fan 2.2KW centrifugal fans
Exhaust Duct Straight tube and bend
Heating System Halogen Infrared Heating Infrared heating lamps with explosion resistant ,220V/380V,24KW, 8 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps
Max.Working Temperature 80℃
Heating Up Time 5-8min
Control System Control Panel Intelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop
Functions Spray, Bake, Lighting and Emergency Stop

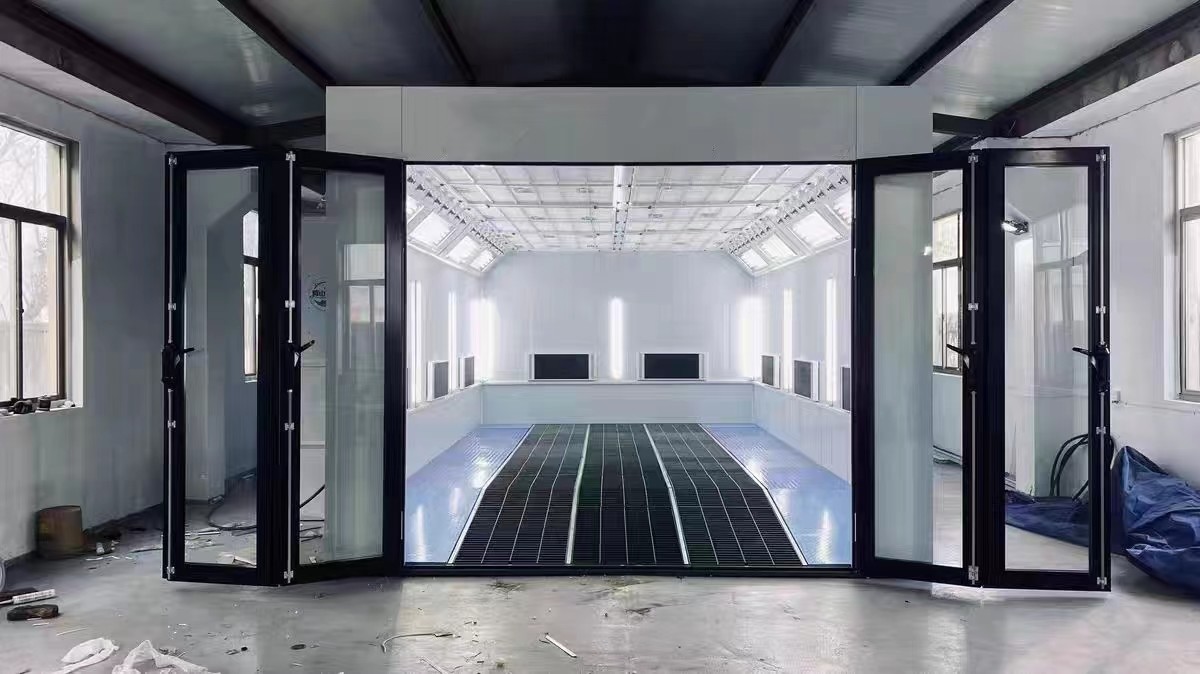

Size Inner Size 7900*4100*2700mm (L*W*H)
Outer Size 8000*5300*3300mm (L*W*H)
Remarks: 1.Quantum Graphene Heating System are optional according to the requirement.
2.Electric and Diesel Heating System are optional according to the requirement.

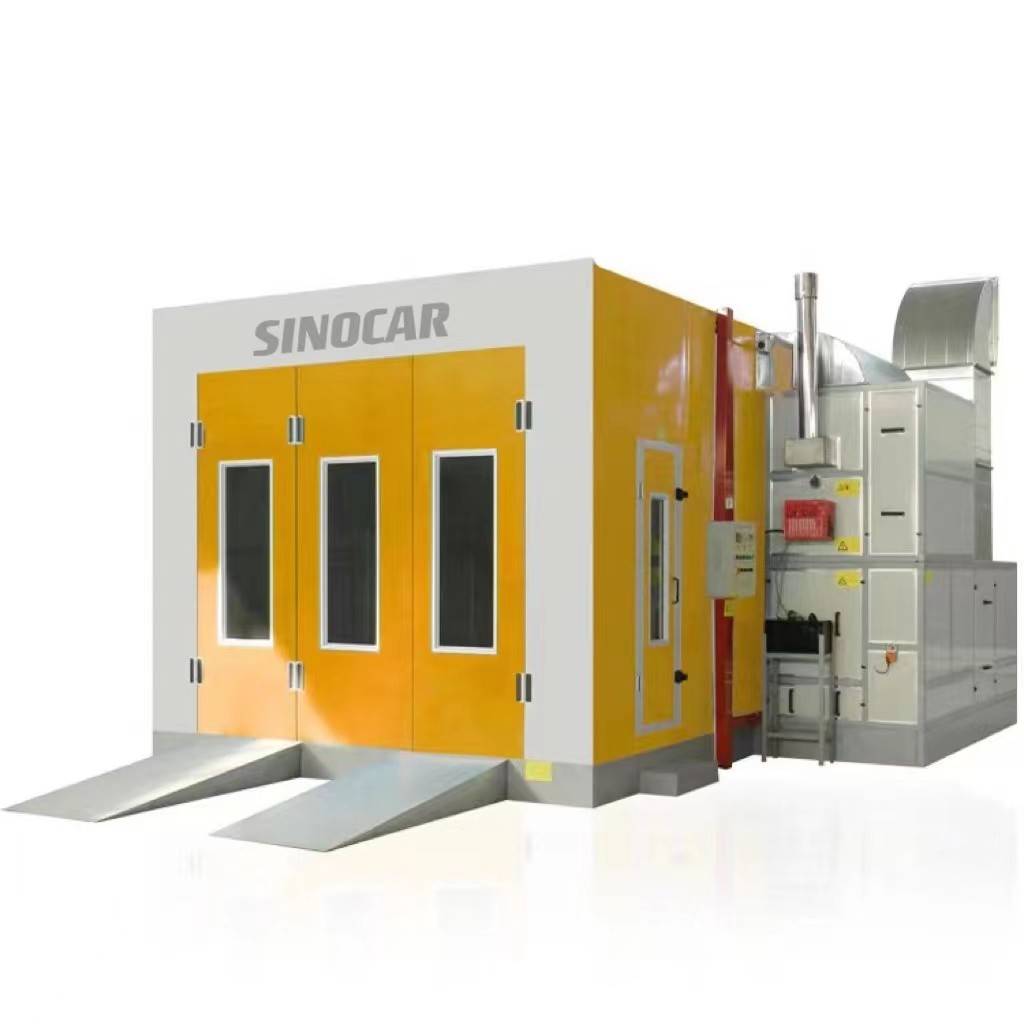

2 Stage Filter Car Spray Booth Auto Body Spray Booth Working Temperature 80C 02 Stage Filter Car Spray Booth Auto Body Spray Booth Working Temperature 80C 1


The SINOCAR SB-001 Car Spray Booth is a reliable and cost-effective solution for vehicle painting and coating operations. It is built to meet CE/CCC/ISO 9001 standards and comes with a minimum order quantity of 1 SET. It is available at a competitive price, and the packaging is standard. Customers can expect delivery within 5-8 weeks, and payment can be made via T/T, Western Union. With a monthly supply ability of 100 PCS, this spray booth is ideal for automotive paint shops and garages. It includes a 2-stage filter and manual control, and the front door/safety door is a three offs sheetmetal front door with glass. The LED lighting ensures uniform coverage and provides superior visibility. The SINOCAR SB-001 Car Spray Booth is perfect for professional automotive paint booth applications.



Customized Vehicle Spray Booth from SINOCAR
  • Brand Name: SINOCAR
  • Model Number: SB-001
  • Place of Origin: Shanghai,China
  • Certification: CE/CCC/ISO 9001
  • Minimum Order Quantity: 1 SET
  • Price: Price peivate chat to get
  • Packaging Details: Standard Package
  • Delivery Time: 5-8 weeks
  • Payment Terms: T/T, Western Union
  • Supply Ability: 100 PCS Per Month
  • Max.Working Temperature: 80℃
  • Lighting: LED
  • Filter System: Floor Filter & Celling Filter
  • Safety: Explosion-proof
  • Spray Booth: Included

SINOCAR is your trusted supplier of customized Vehicle Spray Booth. Our Vehicle Spray Booth is specially designed for vehicle painting, providing you with a safe and efficient work environment. With our CE/CCC/ISO 9001 certification, you can be sure that our product is of the highest quality and safety standards. Our Vehicle Spray Booth is equipped with LED lighting, floor filter and ceiling filter, and an explosion-proof safety system. It also has a maximum working temperature of 80℃. We offer the Vehicle Spray Booth with a minimum order quantity of 1 SET and a delivery time of 5-8 weeks. Contact us for more information about pricing and payment terms.


Support and Services:

Car Spray Booth Technical Support and Services

We provide technical support and services for our Car Spray Booth products. Our team of experienced technicians are available to provide advice and assistance with installation, maintenance, troubleshooting and repairs.

If you require assistance at any stage, our team is on hand to help. We offer a range of services including on-site installation and training, telephone support and remote troubleshooting.

We offer a wide range of spare parts, consumables and accessories for our products. If you require any parts or components, please contact our team for availability and pricing.

We are committed to providing excellent customer service and support. If you have any questions or queries, please do not hesitate to contact us.
