84kw Coating Solutions Truck Spray Booth 15m Vehicle Paint Booth
Contact Person : Victoria
Phone Number : +8615935349527
WhatsApp : +8615935349527
Minimum Order Quantity : | 1 set | Price : | Price peivate chat to get |
---|---|---|---|
Packaging Details : | Standard Package | Delivery Time : | 5-8 weeks |
Payment Terms : | T/T, Western Union | Supply Ability : | 100 PCS Per Month |
Place of Origin: | Shanghai,China | Brand Name: | SINOCAR |
---|---|---|---|
Certification: | CE/CCC/ISO 9001 | Model Number: | SC-007 |
Detail Information |
|||
Heating System: | Electric Heating/Diesel Heating/Gas Heating | Front Door/Safety Door: | Four Sheetmetal Front Door With Glass |
---|---|---|---|
Heating Up Time: | 5-8min | Halogen Infrared Heating: | 220V/380V,84KW |
Ceiling Filter: | Filtering Rate> 98% | Intake Fan: | 4×5.5KW YDW Double-intake Centrifugal Fans, Total Air Capacity: 55000m³/h |
Exhaust Duct: | 2*2.2kw Outlet Fans, Straight Tube And Bend | Size: | Customized |
Product Description

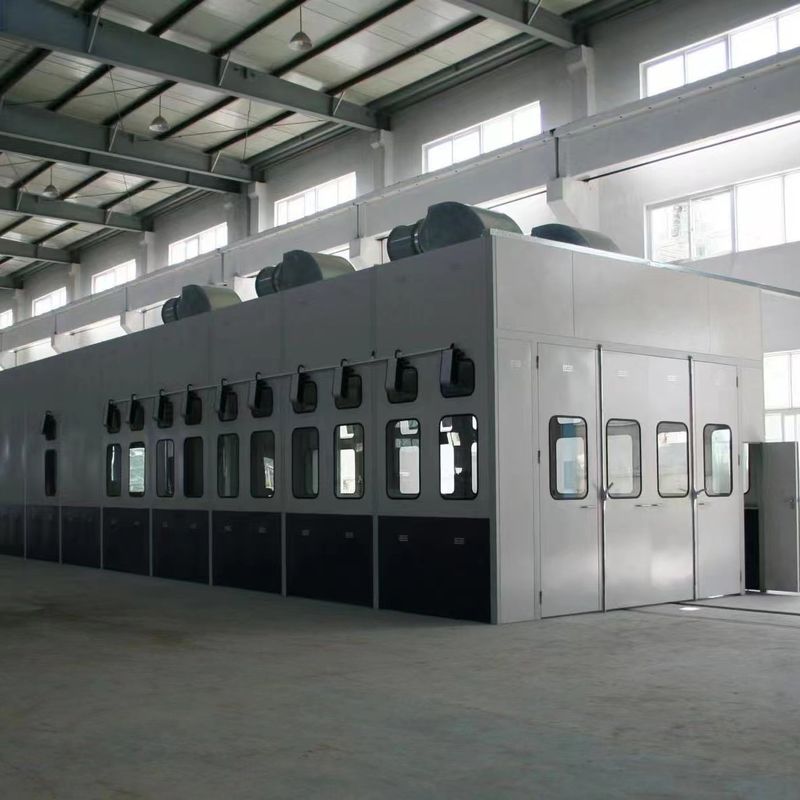

The Bus Spray Booth provides a reliable solution for automotive painting and refinish work. It is designed with an aluminum alloy frame, and is equipped with LED Lighting that consists of 16 Groups×3pieces =48pieces ×16W for maximum efficiency. The Primary Filter can capture granules larger than 10μm, and the filtering rate is more than 90%. The booth is also equipped with four sheet metal front door with glass for enhanced safety. For heating system, it can be electric heating, diesel heating or gas heating. The booth comes with a 1-year warranty.
Specification | Description |
---|---|
Intake Fan | 4×5.5KW YDW Double-intake Centrifugal Fans, Total Air Capacity: 55000m³/h |
Halogen Infrared Heating | 220V/380V,84KW |
Exhaust Duct | 2*2.2kw Outlet Fans, Straight Tube And Bend |
Heating System | Electric Heating/Diesel Heating/Gas Heating |
LED Lighting | 16 Groups×3pieces =48pieces ×16W |
Warranty | 1 Year |
Primary Filter | The Primary Filter Can Capture Granules Larger Than 10μm, Filtering Rate > 90% |
Front Door/Safety Door | Four Sheetmetal Front Door With Glass |
Heating Up Time | 5-8min |
Power | 2.2KW |
Bus Spray Booth is a paint booth that is designed and manufactured by SINOCAR with model number SC-007. It is certified by CE/CCC/ISO 9001 and is produced in Shanghai, China. The minimum order quantity is 1 set, and the price is available upon private chat. The package is standard and the delivery time is 5-8 weeks. Payment terms are T/T or Western Union, and the supply ability is 100 PCS Per Month. This Bus Spray Booth features a four sheetmetal front door with glass, electric heating/diesel heating/gas heating, 16 groups×3pieces =48pieces ×16W LED lighting, and a primary filter that can capture granules larger than 10μm, with a filtering rate of more than 90%.
We offer technical support and service for our Bus Spray Booth product. Our technical support team is available to answer any questions you may have about our product. We also provide installation and repair services, as well as ongoing maintenance and troubleshooting. If you have any issues with our product, our team is happy to help. We also provide a range of training materials and resources to help you get the most out of your product.
