2*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98%

Minimum Order Quantity : 1 Price : Price peivate chat to get
Packaging Details : Standard Package Delivery Time : one week
Payment Terms : T/T, Western Union Supply Ability : 100 PCS Per Month
Place of Origin: Shanghai,China Brand Name: SINOCAR
Certification: CE/CCC/ISO 9001

Detail Information

Exhaust Duct: 2*2.2kw Outlet Fans, Straight Tube And Bend Ceiling Filter: Filtering Rate> 98%
Package: Carton Box Warranty: 1 Year
Heating System: Electric Heating/Diesel Heating/Gas Heating Power: 2.2KW
Size: Customized Heating Up Time: 5-8min
High Light:

Compact Portable Car Washing Machine 220V

,

4KW Portable Car Washing Machine

,

commercial car washer for Steam Washing

Product Description

Click here to go to the SINOCAR official website:
http://www.carspray-booth.com

Click Contact Now on the right to live chat with the sales manager now to get a quote

Product Description:

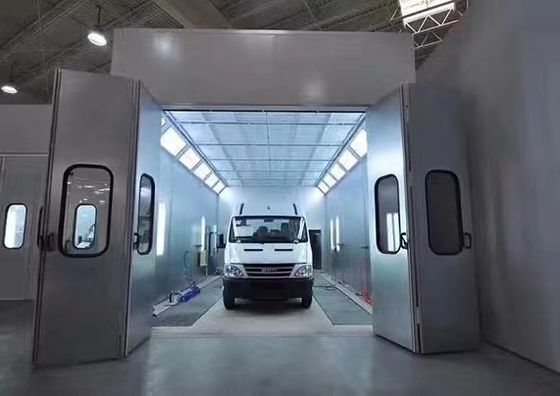

The Bus Spray Booth is designed to provide a quick and convenient spray painting solution for bus manufacturers. It features a 5-8 minute heating up time, 4×5.5KW YDW double-intake centrifugal fans with a total air capacity of 55000m³/h, halogen infrared heating of 220V/380V and 84KW, and two 2.2KW outlet fans along with straight tube and bends for the exhaust duct. The ceiling filter of this product ensures a filtering rate of more than 98%.



Features:

  • Product Name: Bus Spray Booth
  • Front Door/Safety Door: Four Sheetmetal Front Door With Glass
  • Intake Fan: 4×5.5KW YDW Double-intake Centrifugal Fans, Total Air Capacity: 55000m³/h
  • Ceiling Filter: Filtering Rate> 98%
  • Primary Filter: The Primary Filter Can Capture Granules Larger Than 10μm, Filtering Rate > 90%
  • Exhaust Duct: 2*2.2kw Outlet Fans, Straight Tube And Bend

Technical Parameters:

Attribute Value
LED Lighting 16 Groups×3pieces =48pieces ×16W
Exhaust Duct 2*2.2kw Outlet Fans, Straight Tube And Bend
Size Customized
Primary Filter The Primary Filter Can Capture Granules Larger Than 10μm, Filtering Rate > 90%
Halogen Infrared Heating 220V/380V,84KW
Ceiling Filter Filtering Rate> 98%
Intake Fan 4×5.5KW YDW Double-intake Centrifugal Fans, Total Air Capacity: 55000m³/h
Warranty 1 Year
Front Door/Safety Door Four Sheetmetal Front Door With Glass
Product Name Bus Spray Booth
2*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 02*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 12*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 2



2*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 3

2*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 4



2*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 5

2*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 62*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 72*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 82*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 9

2*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 10

2*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 112*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 122*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 132*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 14

2*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 152*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 162*2.2kw Outlet Fans Bus Spray Booth with Front Door/Safety Door Ceiling Filter Rate 98% 17

Applications:

SINOCAR Bus Spray Booth (Model Number:SC-007) is a perfect solution for bus painting industry. It is designed with a wide range of features that make it highly efficient and cost-effective. The primary filter can capture granules larger than 10μm, with a filtering rate over 90%. The booth features two 2.2kw outlet fans and straight tube/bend exhaust duct for efficient and effective exhaust. The booth can be heated up in just 5-8 minutes. It also features LED lighting with 16 groups×3pieces, totaling 48pieces ×16W. The booth is certified with CE/CCC/ISO 9001, and requires a minimum order of 1 set. The price is private chat to get, and the standard packaging ensures safe delivery in 5-8 weeks. Payment can be made via T/T or Western Union, and the supply ability of 100pcs per month is available.

SINOCAR Bus Spray Booth is suitable for a wide range of applications, including painting and finishing of buses, trucks, and other vehicles. It ensures consistent and even paint application, and the entire process is highly efficient and cost-effective. The booth also features advanced safety features to ensure the safety of the operators. The booth can also be used for other types of industries, such as aerospace, automotive, construction, marine, and other industries where paint application is needed.

SINOCAR Bus Spray Booth is an ideal choice for bus paint shops and other industries that require efficient and accurate paint application. It is designed with advanced features and the highest quality components to ensure consistent performance. With its wide range of application and cost-efficiency, the booth is the perfect choice for bus paint shops and other industries where paint application is needed.

Customization:

SINOCAR SC-007 Bus Spray Booth Customization Service

Brand Name: SINOCAR
Model Number: SC-007
Place of Origin: Shanghai,China
Certification: CE/CCC/ISO 9001
Minimum Order Quantity: 1 set
Price: Price peivate chat to get
Packaging Details: Standard Package
Delivery Time: 5-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 100 PCS Per Month

Features:
  • Primary Filter: The Primary Filter Can Capture Granules Larger Than 10μm, Filtering Rate > 90%
  • Exhaust Duct: 2*2.2kw Outlet Fans, Straight Tube And Bend
  • Intake Fan: 4×5.5KW YDW Double-intake Centrifugal Fans, Total Air Capacity: 55000m³/h
  • Halogen Infrared Heating: 220V/380V,84KW
  • Size: Customized

SINOCAR SC-007 Bus Spray Booth is a custom spray booth designed specifically for the automotive industry. It can be used for car body painting, paint removal, and other related tasks. The booth is equipped with CE/CCC/ISO 9001 certified primary filter and exhaust duct, intake fan, halogen infrared heating, and other high-end components. It is also designed with a customized size that fits the individual needs of your business. By choosing SINOCAR for your Bus Spray Booth needs, you can get the best quality at a competitive price.

Support and Services:

Bus Spray Booth Technical Support and Service

Our team of technical support experts are here to help you with any questions you may have about our Bus Spray Booth products. We provide comprehensive technical support, including troubleshooting, repairs, product upgrades, and more. Our support team is available 24/7 to answer your questions and provide assistance with any issues you may have.

We also offer a wide range of services, from installation to training. We can provide on-site training for you and your staff, to ensure that you get the most out of your Bus Spray Booth. We also provide maintenance and repair services, to keep your Bus Spray Booth running smoothly and efficiently.

At Bus Spray Booth, we are committed to providing the highest quality of technical support and service. If you have any questions or issues, please do not hesitate to contact us. We are here to help you get the most out of your investment.
