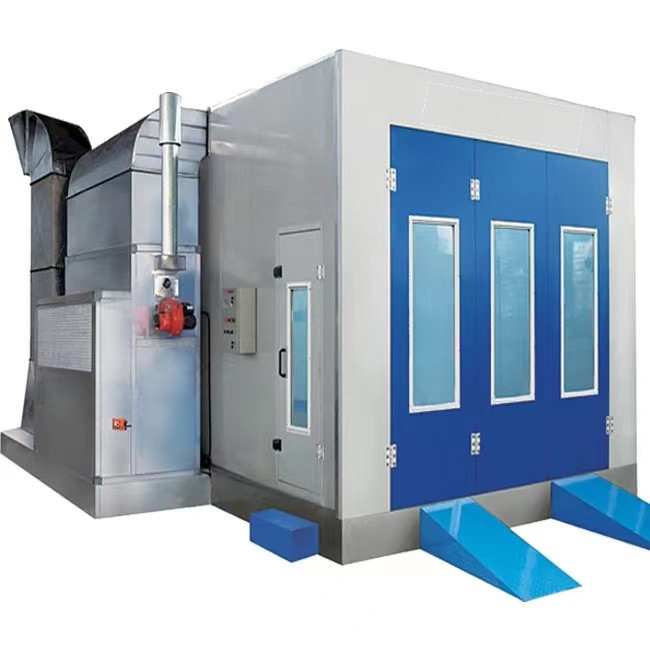

6.9m Car Furniture Spray Booth With Adjustable Airflow And Temperature Control

Minimum Order Quantity : 1 SET Price : Price peivate chat to get
Packaging Details : Standard Package Delivery Time : 5-8 weeks
Payment Terms : T/T, Western Union Supply Ability : 100 PCS Per Month
Place of Origin: Shanghai,China Brand Name: SINOCAR
Certification: CE/CCC/ISO 9001 Model Number: SB-001

Detail Information

Product Name: Spray Booth Front Door/Safety Door: Three Offs Sheetmetal Front Door With Glass
Filter: 2-stage Curing System: Included
Max.Working Temperature: 80℃ Safety: Explosion-proof
Lighting: LED Spray Booth: Included
High Light:

6.9m Furniture Spray Booth


car Furniture Spray Booth 2 stage


6.9m furniture paint booth

Product Description

6.9 m Automotive Paint Booth with Rock Wool Panel Fire Resistant Wall

Product Description:

Our car spray booth is a professional vehicle painting booth system designed to provide the best working environment for automotive painting. It has a maximum working temperature of 80℃ and a two-stage filter to ensure a safe and efficient working environment. It also features a three-off sheetmetal front door with glass, LED lighting, and a rock wool panel fire resistant wall without glass for the safety door. This car spray booth is ideal for automotive painting and provides a safe, efficient, and comfortable working environment.


Product Name: car Spray Booth

  • Spray Booth: Included
  • Filter System: Floor Filter & Celling Filter
  • Curing System: Included
  • Filter: 2-stage
  • Material: Steel
  • Automotive Paint Booth
  • Vehicle Spray Booth
  • Automotive Paint Booth
    Basement Structure Basement Steel structure, 2 row of checked plates and 3 rows of vein boards,with the loading capacity of 3T
    Basement Height 300MM
    Ramp Inner ramp/external ramp
    Booth Cabin Panel 1.Colorful steel skin panel. Rock wool panel fire resistant wall 5cm, two layers 0.35cm steel cover with fire resistant thermal insulation materials in.
    2.Galvanized steel roof panel, anti-flame
    Front Door/Safety Door Three offs sheetmetal front door with glass
    Safety Door Rock wool panel fire resistant wall without glass
    Lighting System Top Lighting LED Ceiling lights:8 groups×3pieces =24pieces ×16W, with powder-coated light box
    Filter System Primary Filter The primary filter can capture granules larger than 10μm, filtering rate > 83%
    Floor Filter Multi-layer fiberglass filter, filtering rate>70%
    Ceiling Filter Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%
    Intake&Exhaust System Intake Fan 2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h
    Exhaust Duct Straight tube and bend
    Heating System Halogen Infrared Heating 220V/380V,24KW, 8 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps.(Diesel heating: oil burner with 140000Kcal/h, Optional)
    Max.Working Temperature 80℃
    Heating Up Time 5-8min
    Control System Control Panel Intelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop
    Functions Spray, Bake, Lighting and Emergency Stop
    Size Inner Size 6900*3900*2700mm (L*W*H)
    Outer Size 7000*5100*3200mm (L*W*H)
    Remarks:  Electric and Diesel Heating System are optional according to the requirement.
    6.9m Car Furniture Spray Booth With Adjustable Airflow And Temperature Control 06.9m Car Furniture Spray Booth With Adjustable Airflow And Temperature Control 1


Packing and Shipping:



1. Why choose SINOCAR?
* Top Quality, Competitive Price with high quality revenue producing products.
* Excellent Customer Service.
* Quickest reply in 24 hours with technical support, email, telephone or video call.
* Fast Shipment.
* User-friendly English manual for machine using and maintaining.

2. How is the quality and safety of your products?
* Our products have been tested and CE certified for safety. They also meet the American
and Australian Standard.

3. Q: What's the Min order to your company?
* Minimum Order is 1 set. We have products in stocks, we will send out the products within 2 days.

4. Are Sinocar products designed for commercial use?
* All of our products can be used in commercial applications without any problems.

5. I am a person who values service. How about your after-sales service?
* We provide great purchase experiences. All our products have at least 12 months warranty, if there is any problem for the productsinstallment or usage, we provided skilled technical support and also provide the repair parts if the machine parts broken duringthe warranty period.

6. Do you offer any custom designs?
* Yes, Sinocar provide OEM/ODM services to top range partners. And our skilled engineers can provide great designing suggestions.
