Product Description

Environmental responsibility is a priority in our Bus Spray Booth operations. Our cutting-edge filtration and emission control systems minimize the impact on the environment, while our choice of eco-friendly paints underscores our commitment to sustainability.

Features:

• Product Name: car Spray Booth
• Spray Booth: Included
• Filter System: Floor Filter & Celling Filter
• Curing System: Included
• Filter: 2-stage
• Material: Steel
• Automotive Paint Booth
• Vehicle Spray Booth
• Automotive Paint Booth

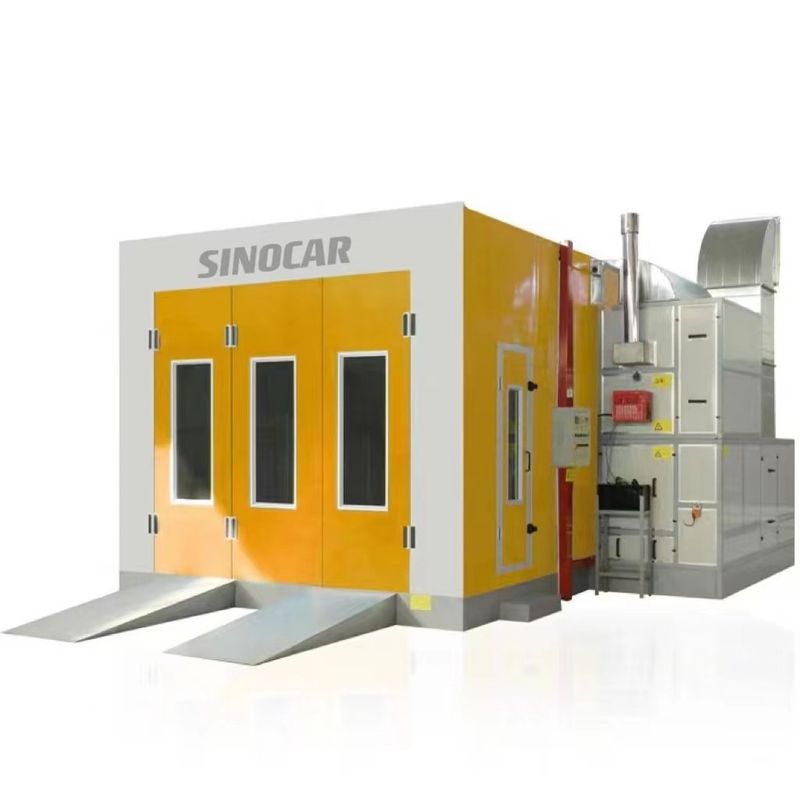

  SINOCAR SB-001(STANDARD SPECS )
  Basement Structure	Basement	Steel structure, 2 row of checked plates and 3 rows of vein boards,with the loading capacity of 3T
  	Basement Height	300MM
  	Ramp	Inner ramp/external ramp
  Booth Cabin	Panel	1.Colorful steel skin panel. Rock wool panel fire resistant wall 5cm, two layers 0.35cm steel cover with fire resistant thermal insulation materials in. 2.Galvanized steel roof panel, anti-flame
  	Front Door/Safety Door	Three offs sheetmetal front door with glass
  	Safety Door	Rock wool panel fire resistant wall without glass
  Lighting System	Top Lighting	LED Ceiling lights:8 groups×3pieces =24pieces ×16W, with powder-coated light box
  Filter System	Primary Filter	The primary filter can capture granules larger than 10μm, filtering rate > 83%
  	Floor Filter	Multi-layer fiberglass filter, filtering rate＞70%
  	Ceiling Filter	Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%
  Intake&Exhaust System	Intake Fan	2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h
  	Exhaust Duct	Straight tube and bend
  Heating System	Halogen Infrared Heating	220V/380V,24KW, 8 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps.(Diesel heating: oil burner with 140000Kcal/h, Optional)
  	Max.Working Temperature	80℃
  	Heating Up Time	5-8min
  Control System	Control Panel	Intelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop
  	Functions	Spray, Bake, Lighting and Emergency Stop
  Size	Inner Size	6900*3900*2700mm (L*W*H)
  	Outer Size	7000*5100*3200mm (L*W*H)
  Remarks:	Electric and Diesel Heating System are optional according to the requirement.



Packing and Shipping:

FAQ:

1. Why choose SINOCAR?
* Top Quality, Competitive Price with high quality revenue producing products.
* Excellent Customer Service.
* Quickest reply in 24 hours with technical support, email, telephone or video call.
* Fast Shipment.
* User-friendly English manual for machine using and maintaining.

2. How is the quality and safety of your products?
* Our products have been tested and CE certified for safety. They also meet the American
and Australian Standard.

3. Q: What's the Min order to your company?
* Minimum Order is 1 set. We have products in stocks, we will send out the products within 2 days.

4. Are Sinocar products designed for commercial use?
* All of our products can be used in commercial applications without any problems.

5. I am a person who values service. How about your after-sales service?
* We provide great purchase experiences. All our products have at least 12 months warranty, if there is any problem for the productsinstallment or usage, we provided skilled technical support and also provide the repair parts if the machine parts broken duringthe warranty period.

6. Do you offer any custom designs?
* Yes, Sinocar provide OEM/ODM services to top range partners. And our skilled engineers can provide great designing suggestions.
