2 Stage Automotive Refinish Paint Booths Vehicle Spray Booth With LED Lighting

Minimum Order Quantity : 1 SET Price : $6000-$15000
Packaging Details : Standard Package Delivery Time : 5-8 weeks
Payment Terms : T/T, Western Union Supply Ability : 100 PCS Per Month
Place of Origin: Shanghai,China Brand Name: SINOCAR
Certification: CE/CCC/ISO 9001 Model Number: SB-001

Detail Information

Material: Steel Spray Booth: Included
Control: Manual Filter: 2-stage
Lighting: LED Safety Door: Rock Wool Panel Fire Resistant Wall Without Glass
Max.Working Temperature: 80℃ Filter System: Floor Filter & Celling Filter
High Light:

2 stage automotive refinish paint booths


manually automotive refinish paint booths


vehicle spray booth with LED Lighting

Product Description

How to get a quote quickly?

1.Click here to go to the SINOCAR official website:


2.Click live chat to get a quote now!

Included Spray Booth Vehicle Painting Booth with LED Lighting

Product Description:

The automotive paint booth, also known as the vehicle painting booth, is an essential tool for any automotive and industrial paint shop. It is designed to provide a safe, efficient and controlled environment for the application of any kind of paint or coating. Our spray booth has a curing system included, and a safety door with rock wool panel fire resistant wall without glass. Its maximum working temperature is 80℃, and it is explosion-proof for added safety. In addition, our spray booth is easy to install, energy saving, and provides good air circulation for a better painting result. With our spray booth, you can enjoy a fast and effective painting job, and an improved overall working efficiency.



  • Product Name: Car Spray Booth
  • Spray Booth: Automotive Paint Booth / Vehicle Spray Booth / Automotive Paint Booth / Paint Booth
  • Safety Door: Rock Wool Panel Fire Resistant Wall Without Glass
  • Lighting: LED
  • Filter System: Floor Filter & Celling Filter
  • Control: Manual

Technical Parameters:

Basement Structure Basement Steel structure, 2 row of checked plates and 3 rows of vein boards,with the loading capacity of 7T
Basement Height 300MM
Ramp Inner ramp/external ramp
Booth Cabin Panel 1.Colorful steel skin panel. Rock wool panel fire resistant wall 5cm, two layers 0.35mm steel cover with fire resistant thermal insulation materials in.
2.Galvanized steel roof panel, anti-flame
Front Door/Safety Door Four offs all glass front door
Safety Door sheetmetal door with glass
Lighting System Top Lighting LED Ceiling lights:8 groups×3pieces =24pieces ×16W, with powder-coated light box
Wall LED boards 8 sets of LED light 3*16W=48W
Filter System Ceiling Filter Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%
Intake&Exhaust System Intake Fan 2×5.5KW YDW double-intake centrifugal fans, total air capacity: 28000m³/h
Outlet fan 2.2KW centrifugal fans
Exhaust Duct Straight tube and bend
Heating System Halogen Infrared Heating Infrared heating lamps with explosion resistant ,220V/380V,24KW, 8 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps
Max.Working Temperature 80℃
Heating Up Time 5-8min
Control System Control Panel Intelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop
Functions Spray, Bake, Lighting and Emergency Stop
Size Inner Size 7900*4100*2700mm (L*W*H)
Outer Size 8000*5300*3300mm (L*W*H)
Remarks: 1.Quantum Graphene Heating System are optional according to the requirement.
2.Electric and Diesel Heating System are optional according to the requirement.

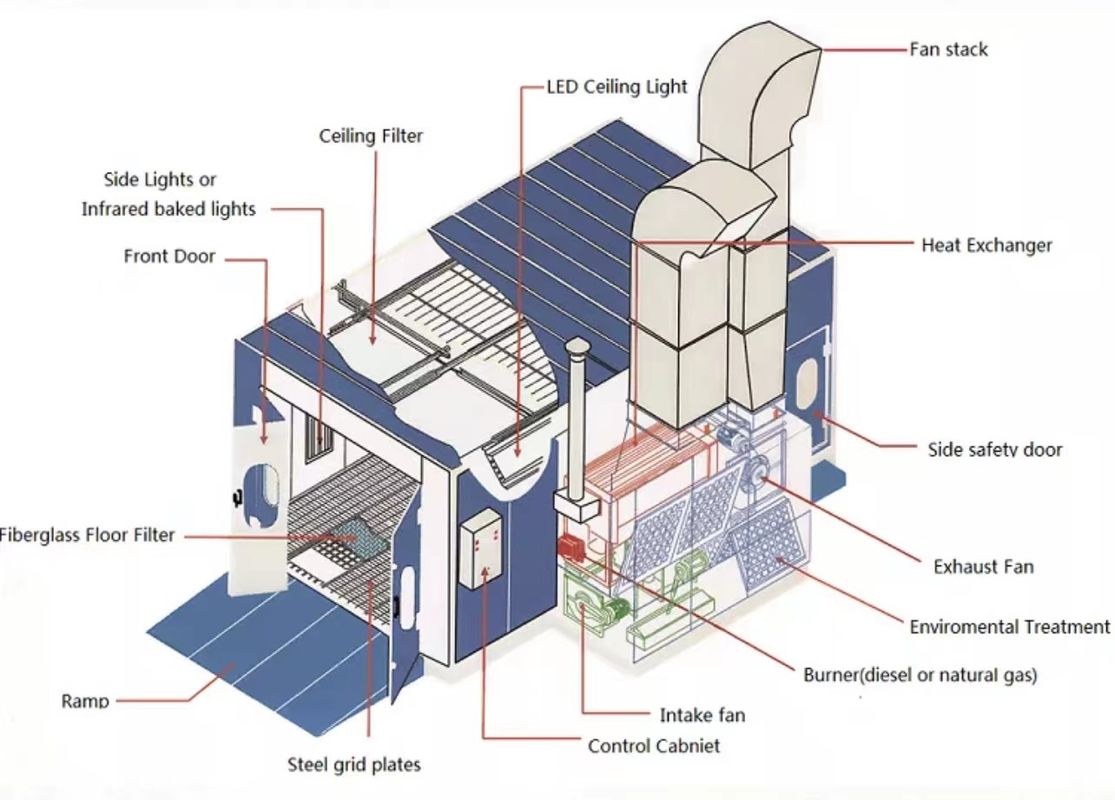

2 Stage Automotive Refinish Paint Booths Vehicle Spray Booth With LED Lighting 02 Stage Automotive Refinish Paint Booths Vehicle Spray Booth With LED Lighting 1


SINOCAR Spray Booth SB-001 can be used for vehicle painting and automotive paint applications. This product is made in Shanghai,China and is certified by CE/CCC/ISO 9001. The minimum order quantity is 1 SET, and customers can get the price by private chat. The package of the product is standard, and the delivery time is 5-8 weeks. Customers can pay by T/T or Western Union, and the supply ability is about 100 PCS Per Month. The front door and safety door of this product are both made of three offs sheetmetal front door with glass and rock wool panel fire resistant wall without glass respectively. The LED lighting and explosion-proof safety features further ensure the quality and safety of this product.



Vehicle Spray Booth/Vehicle Painting Booth/Car Spray Paint Booth

Brand Name: SINOCAR

Model Number: SB-001

Place of Origin: Shanghai, China

Certification: CE/CCC/ISO 9001

Minimum Order Quantity: 1 SET

Price: Price peivate chat to get

Packaging Details: Standard Package

Delivery Time: 5-8 weeks

Payment Terms: T/T, Western Union

Supply Ability: 100 PCS Per Month

Lighting: LED

Filter: 2-stage

Curing System: Included

Safety Door: Rock Wool Panel Fire Resistant Wall Without Glass

Filter System: Floor Filter & Celling Filter

Support and Services:

Car Spray Booth Technical Support and Service

We offer technical support and service for our Car Spray Booth. Our experts are available to answer any questions you may have about the product and its features. We also provide a comprehensive warranty and maintenance service to ensure that your booth operates at its best. If you ever experience any problems with the product, please contact us and we will do our best to help you.
