Electric Heating Bus Spray Oven Heating Up Fast Heating System Electric/Diesel Heating
Contact Person : Victoria
Phone Number : +8615935349527
WhatsApp : +8615935349527
| Minimum Order Quantity : | 1 | Price : | $11000-$15000 |
|---|---|---|---|
| Packaging Details : | standard package | Delivery Time : | one week |
| Payment Terms : | T/T, Western Union | Supply Ability : | 100PCS/Month |
| Place of Origin: | Shanghai,Chnia | Brand Name: | SINOCAR |
|---|---|---|---|
| Certification: | CE, CCC, ISO |
|
Detail Information |
|||
| Product Name: | Bus Spray Booth | LED Lighting: | 16 Groups×3pieces =48pieces ×16W |
|---|---|---|---|
| Operation Mode: | Manual/Remote Control | Front Door/Safety Door: | Four Sheetmetal Front Door With Glass |
| Heating System: | Electric Heating/Diesel Heating/Gas Heating | Color: | Optional |
| Primary Filter: | The Primary Filter Can Capture Granules Larger Than 10μm, Filtering Rate > 90% | Heating Up Time: | 5-8min |
| High Light: | 1200mm Scissor Car Lift,1600mm Scissor Car Lift,Ergonomic vehicle scissor lift |
||
Product Description

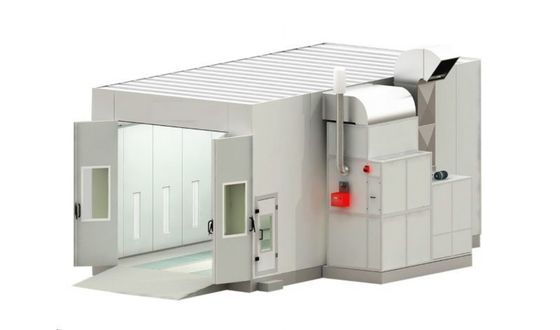

The Bus Spray Booth is a state-of-the-art product designed for professional painting applications. It provides a safe, controlled, and efficient environment for painting buses of all sizes. With its advanced features and customizable options, this product is the perfect choice for any bus painting project.
Technical Parameters:
| SINOCAR SB-007(BUS AND TRUCK ) | ||
| Basement Structure | Basement | Mount on concret, no floor |
| Basement Height | 0 | |
| Ramp | no ramp | |
| Booth Cabin | Panel | 1.Colorful steel skin panel. Rock wool panel fire resistant wall 5cm, two layers 0.35mm steel cover with fire resistant thermal insulation materials in. 2.Galvanized steel roof panel, anti-flame |
| Front Door/Safety Door | Four sheetmetal front door with glass | |
| Safety Door | Rock wool panel fire resistant wall without glass | |
| Lighting System | LED Lighting | LED Ceiling lights:16 groups×3pieces =48pieces ×16W, with powder-coated light box; 16pcs side LED |
| Filter System | Primary Filter | The primary filter can capture granules larger than 10μm, filtering rate > 90% |
| Floor Filter | no | |
| Ceiling Filter | Ceiling filter can capture granules bigger than 4μm, filtering rate> 98% | |
| Intake&Exhaust System | Intake Fan | 4×5.5KW YDW double-intake centrifugal fans, total air capacity: 55000m³/h |
| Exhaust Duct | 2*2.2kw outlet fans, Straight tube and bend | |
| Heating System | Halogen Infrared Heating | 220V/380V,84KW, 28 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps; (Diesel heating: oil burner with 260000Kcal/h, Optional) |
| Max.Working Temperature | 80℃ | |
| Heating Up Time | 5-8min | |
| Control System | Control Panel | Intelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop |
| Functions | Spray, Bake, Lighting and Emergency Stop | |
| Size | Inner Size | 15000*5000*4800 mm |
| Outer Size | 15150*6300*5300 mm | |
| Remarks: Electric and Diesel Heating System are optional according to the requirement. | ||
